模块式双刃粗镗

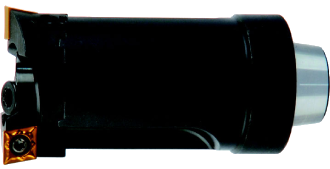

模块式双刃粗镗	Modular Double-edged Rough Boring Tool

Type																									Dc mm						d1 mm					X1 mm					X2 mm					Edge				kg						Insert Type
N2-TBA020-024.CC06																									20-24						25					80					65					2				0.2						CC..0602..
N2-TBA023-027.CC06																									23-27						25					80					65					2				0.2
N2-TBA026-033.CC06																									26-33						25					80					/					2				0.3
N3-TBA033-041.CC06																									33-41						32					80					/					2				0.5
N4-TBA041-055.CC09																									41-55						40					80					/					2				0.8						CC..09T3..
N5-TBA055-070.CC09																									55-70						50					100					/					2				1.6
N6-TBA070-090.CC12																									70-90						63					100					/					2				2.5						CC..1204..
N8-TBA090-110.CC12																									90-110						80					100					/					2				4.0
N8-TBA110-133.CC12																									110-133						80					100					/					2				5.0
N8-TBA130-153.CC12																									130-153						80					100					/					2				5.0

Type

Tool Base

Tool Holder

Tool Holder Screw

Insert Screw

Insert Key

N2-TBA020-024.CC06

N2G-TBA020-027

TBA20.CC06

FS1093

FCS923

TORX07-1367

N2-TBA023-027.CC06

N2G-TBA020-027

TBA23.CC06

FS1093

FCS923

N2-TBA026-033.CC06

N2G-TBA026-035

TBA26.CC06

FS1093

FCS923

N3-TBA033-041.CC06

N3G-TBA033-044

TBA33.CC06

FS1094

FCS923

N4-TBA041-055.CC09

N4G-TBA041-056

TBA41.CC09

FCS1095

FCS359

TORX15-1367

N5-TBA055-070.CC09

N5G-TBA055-073

TBA55.CC09

FCS1095

FCS359

N6-TBA070-090.CC12

N6G-TBA070-093

TBA70.CC12

FCS1096

FCS1030

TORX20-1367

N8-TBA090-110.CC12

N8G-TBA090-113

TBA90.CC12

FCS1097

FCS1030

N8-TBA110-133.CC12

N8G-TBA110-153

TBA110.CC12

FCS1097

FCS1030

N8-TBA130-153.CC12

N8G-TBA110-153

TBA130.CC12

FCS1097

FCS1030

	Insert Type	D mm	a°	S mm
	CC..0602..	6.35	7	2.38
	CC..09T3..	9.525	7	3.97
	CC..1204..	12.7	7	4.76

Material Type

P

M

K

N

Applicable Insert Type

Alloy steel

Stainless steel

Cast iron

Non-ferrous metals

CCMT060204-M

FCP20

FCM20

FCK20

-

CCMT060208-M

FCP20

FCM20

FCK20

-

CCGT060202

-

-

-

FCN20

CCGT060204

-

-

-

FCN20

CCGT060202

-

-

-

FCD20

CCMT09T304-M

FCP20

FCM20

FCK20

-

CCMT09T308-M

FCP20

FCM20

FCK20

-

CCGT09T302

-

-

-

FCN20

CCGT09T304

-

-

-

FCN20

CCGT09T304

-

-

-

FCD20

CCMT120404-M

FCP20

FCM20

FCK20

-

CCMT120408-M

FCP20

FCM20

FCK20

-

CCGT120404

-

-

-

FCN20

CCGT120408

-

-

-

FCN20

CCGT120404

-

-

-

FCD20

Type																									Dc mm						d1 mm					X1 mm					X2 mm					Edge				kg						Insert Type
N2-TBA020-024.WC03																									20-24						25					80					65					2				0.2						WC..0302..
N2-TBA023-027.WC03																									23-27						25					80					65					2				0.2
N2-TBA026-033.WC03																									26-33						25					80										2				0.3
N3-TBA033-041.WC04																									33-41						32					80										2				0.5
N4-TBA041-055.WC06																									41-55						40					80										2				0.8						WC..0402..
N5-TBA055-070.WC06																									55-70						50					100										2				1.6						WC..06T3..
N6-TBA070-090.WC08																									70-90						63					100										2				2.5
N8-TBA090-110.WC08																									90-110						80					100										2				4.0						WC..0804..
N8-TBA110-133.WC08																									110-133						80					100										2				5.0
N8-TBA130-153.WC08																									130-153						80					100										2				5.0

Type

Tool Base

Tool Holder

Tool Holder Screw

Insert Screw

Insert Key

N2-TBA020-024.WC03

N2G-TBA020-027

TBA20.WC03

FS1093

FCS1020

TORX07-1367

N2-TBA023-027.WC03

N2G-TBA020-027

TBA23.WC03

FS1093

FCS1020

N2-TBA026-033.WC03

N2G-TBA026-035

TBA26.WC03

FS1093

FCS1020

N3-TBA033-041.WC04

N3G-TBA033-044

TBA33.WC04

FS1094

FCS1020

N4-TBA041-055.WC06

N4G-TBA041-056

TBA41.WC06

FCS1095

FCS359

TORX15-1367

N5-TBA055-070.WC06

N5G-TBA055-073

TBA55.WC06

FCS1095

FCS359

N6-TBA070-090.WC08

N6G-TBA070-093

TBA70.WC08

FCS1096

FCS1030

TORX20-1367

N8-TBA090-110.WC08

N8G-TBA090-113

TBA90.WC08

FCS1097

FCS1030

N8-TBA110-133.WC08

N8G-TBA110-153

TBA110.WC08

FCS1097

FCS1030

N8-TBA130-153.WC08

N8G-TBA110-153

TBA130.WC08

FCS1097

FCS1030

	Insert Type	D mm	a°	S mm
	WC..0302..	6.35	7	2.38
	WC..0402..	6.35	7	2.38
	WC..06T3..	9.525	7	3.97
	WC..0804..	12.7	7	4.76

Material Type

P

M

K

N

Applicable Insert Type

Alloy steel

Stainless steel

Cast iron

Non-ferrous metals

WCMT030202

FPK20

-

FPK20

-

WCGT030202

-

-

-

FCN20

WCMT040202

FPK20

-

FPK20

-

WCGT040202

-

-

-

FCN20

WCMT040204

FPK20

-

FPK20

-

WCGT040204

-

-

-

FCN20

WCMT06T304

FPK20

-

FPK20

-

WCGT06T304

-

-

-

FCN20

WCMT06T308

FPK20

-

FPK20

-

WCGT06T308

-

-

-

FCN20

WCMT080404

FPK20

-

FPK20

-

WCGT080404

-

-

-

FCN20

WCMT080408

FPK20

-

FPK20

-

WCGT080408

-

-

-

FCN20

WCMT080412

FPK20

-

FPK20

-

WCGT080412

-

-

-

FCN20
