孔加工刀座


Kr=95°
MCLNR/L 		Kr=93°
MDJNR/L 		Kr=93°
MTUNR/L 		Kr=93°
MTJNR/L 		Kr=90°
MCFNR/L


展开 关闭


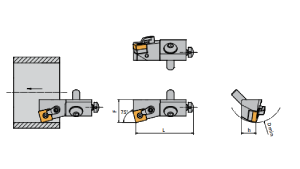

Kr=95°
MCLNR/L




Right-hand Left-hand D min F L1 Insert Stock R Stock L
MCLNR12CA-12 MCLNL12CA-12 50 20 55 CN..1204.. ● ○
MCLNR16CA-12 MCLNL16CA-12 60 25 63 CN..1204.. ● ●
MCLNR20CA-12 MCLNL20CA-12 70 25 70 CN..1204.. ● ○
MCLNR25CA-12 MCLNL25CA-12 100 32 100 CN..1204.. ○ ○
MCLNR20CA-16 MCLNL20CA-16 70 25 63 CN..1606.. ○ ○
MCLNR25CA-16 MCLNL25CA-16 100 32 100 CN..1606.. ○ ○
MCLNR25CA-19 MCLNL25CA-19 100 32 100 CN..1906.. ○ ○


1.png 2.png 3.png 4.png 5.png 6.png 7.png
D min Cutter pad Fitting pin Press plate Dowel screw Radial screw Axial screw Fixing screw
50 NO MLP44 MCPM-6 FCS1161 KUAM23 KUAM31 FCS9025
60 MCS-432 MLP46S MCPM-6 FCS1161 KUAM25 KUAM32 FCS9118
70 CN..12 MCS-432 MLP46 MCPM-20 FCS239 KUAM25 KUAM32 FCS9184
100 CN..12 MCS-432 MLP46 MCPM-21 MCS625-3 KUAM25 KUAM32 FCS9079
70 CN..16 MCS-533 MLP58 MCPM-20 FCS239 KUAM25 KUAM32 FCS9184
100 CN..16 MCS-533 MLP58 MCPM-12 FCS9001 KUAM25 KUAM32 FCS9079
100 CN..19 MCS-633 MLP58 MCPM-12 FCS9001 KUAM25 KUAM32 FCS9079


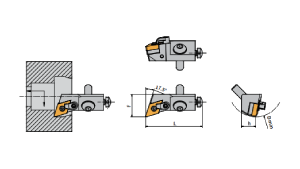

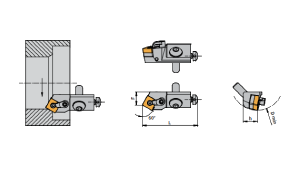

Kr=93°
MDJNR/L




Right-hand
 Left-hand
 D min
 F
 L1
 Insert
 Stock R
 Stock L
MDJNR16CA-15 MDJNL16CA-15 60 25 63 DN..150408 ● ○
MDJNR20CA-15 MDJNL20CA-15 70 25 70 DN..150408 ● ○


1.png 2.png 3.png 4.png 5.png 6.png 7.png
D min Cutter pad Fitting pin Press plate Dowel screw Radial screw Axial screw Fixing screw
60 MSD-442 MLP46S MCPM-6 FCS1161 KUAM25 KUAM32 FCS9118
70 MSD-442 MLP46 MCPM-20 FCS239 KUAM25 KUAM32 FCS9184


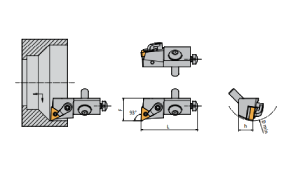

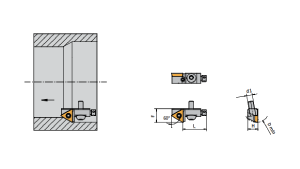

Kr=93°
MTUNR/L




Right-hand
 Left-hand
 D min
 F
 L1
 Insert
 Stock R
 Stock L
MTUNR12CA-16 MTUNL12CA-16 50 20 55 TN..1604.. ● ○
MTUNR16CA-16 MTUNL16CA-16 60 25 63 TN..1604.. ● ○
MTUNR20CA-22 MTUNL20CA-22 70 25 70 TN..2204.. ○ ○


1.png 2.png 3.png 4.png 5.png 6.png 7.png
D min Cutter pad Fitting pin Press plate Dowel screw Radial screw Axial screw Fixing screw
50 NO MLP33L MCPM-6 FCS1161 KUAM23 KUAM31 FCS9025
60 MST-322 MLP34L MCPM-6 FCS1161 KUAM25 KUAM32 FCS9118
70 MST-432 MLP46 MCPM-20 FCS239 KUAM25 KUAM32 FCS9184


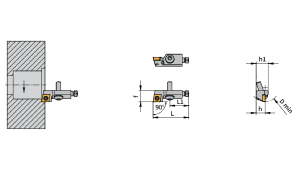

Kr=93°
MTJNR/L




Right-hand
 Left-hand
 D min
 F
 L1
 Insert
 Stock R
 Stock L
MTJNR12CA-16 MTJNL12CA-16 50 20 55 TN..1604.. ○ ○
MTJNR16CA-16 MTJNL16CA-16 60 25 63 TN..1604.. ○ ●
MTJNR20CA-22 MTJNL20CA-22 70 25 70 TN..2204.. ○ ●


1.png 2.png 3.png 4.png 5.png 6.png 7.png
D min Cutter pad Fitting pin Press plate Dowel screw Radial screw Axial screw Fixing screw
50 NO MLP33L MCPM-6 FCS1161 KUAM23 KUAM31 FCS9025
60 MST-322 MLP34L MCPM-6 FCS1161 KUAM25 KUAM32 FCS9118
70 MST-432 MLP46 MCPM-20 FCS239 KUAM25 KUAM32 FCS9184


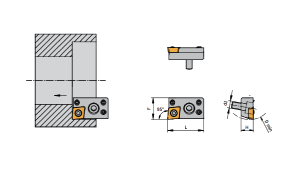

Kr=90°
MCFNR/L




Right-hand
 Left-hand
 D min
 F
 L1
 Insert
 Stock R
 Stock L
MCFNR12CA-09 MCFNL12CA-09 50 20 55 CN..0903.. ○ ○
MCFNR12CA-12 MCFNL12CA-12 50 20 55 CN..1204.. ● ●
MCFNR16CA-12 MCFNL16CA-12 60 25 63 CN..1204.. ● ●
MCFNR20CA-12 MCFNL20CA-12 70 25 70 CN..1204.. ● ○


1.png 2.png 3.png 4.png 5.png 6.png 7.png
D min Cutter pad Fitting pin Press plate Dowel screw Radial screw Axial screw Fixing screw
50 NO MLP22L MCPM-6 FCS1161 KUAM23 KUAM31 FCS9025
50 NO MLP44 MCPM-6 FCS1161 KUAM23 KUAM31 FCS9025
60 MST-432 MLP46S MCPM-6 FCS1161 KUAM25 KUAM32 FCS9118
70 MST-432 MLP46 MCPM-21 MCS625-3 KUAM25 KUAM32 FCS9184


Kr=90°
MTFNR/L




Right-hand
 Left-hand
 D min
 F
 L1
 Insert
 Stock R
 Stock L
MTFNR12CA-16 MTFNL12CA-16 50 20 55 TN..1604.. ● ○
MTFNR16CA-16 MTFNL16CA-16 60 25 63 TN..1604.. ● ○
MTFNR20CA-22 MTFNL20CA-22 70 25 70 TN..2204.. ○ ○


1.png 2.png 3.png 4.png 5.png 6.png 7.png
D min Cutter pad Fitting pin Press plate Dowel screw Radial screw Axial screw Fixing screw
50 NO MLP33L MCPM-6 FCS1161 KUAM23 KUAM31 FCS9025
60 MST-322 MLP34L MCPM-6 FCS1161 KUAM25 KUAM32 FCS9118
70 MST-432 MLP46 MCPM-20 FCS239 KUAM25 KUAM32 FCS9184


Kr=90°
MCGNR/L




Right-hand
 Left-hand
 D min
 F
 L1
 Insert
 Stock R
 Stock L
MCGNR12CA-09 MCGNL12CA-09 50 20 55 CN..0903.. ○ ○
MCGNR12CA-12 MCGNL12CA-12 50 20 55 CN..1204.. ○ ○
MCGNR16CA-12 MCGNL16CA-12 60 25 63 CN..1204.. ○ ●
MCGNR20CA-12 MCGNL20CA-12 70 25 70 CN..1204.. ○ ●


1.png 2.png 3.png 4.png 5.png 6.png 7.png
D min Cutter pad Fitting pin Press plate Dowel screw Radial screw Axial screw Fixing screw
50 CN..0903 NO MLP22L MCPM-6 FCS1161 KUAM23 KUAM31 FCS9025
50 CN..1204 NO MLP44 MCPM-6 FCS1161 KUAM23 KUAM31 FCS9025
60 MST-432 MLP46S MCPM-6 FCS1161 KUAM25 KUAM32 FCS9118
70 MST-432 MLP46 MCPM-20 MCS625-3
 KUAM25 KUAM32 FCS9184


Kr=90°
MTGNR/L




Right-hand
 Left-hand
 D min
 F
 L1
 Insert
 Stock R
 Stock L
MTGNR12CA-16 MTGNL12CA-16 50 20 55 TN..1604.. ○ ○
MTGNR16CA-16 MTGNL16CA-16 50 25 63 TN..1604.. ○ ●
MTGNR16CA-22 MTGNL16CA-22 60 25 63 TN..2204.. ○ ●
MTGNR20CA-22 MTGNL20CA-22 70 25 70 TN..2204.. ○ ○


1.png 2.png 3.png 4.png 5.png 6.png 7.png
D min Cutter pad Fitting pin Press plate Dowel screw Radial screw Axial screw Fixing screw
50 NO MLP33L MCPM-6 FCS1161 KUAM23 KUAM31 FCS9025
60 MST-322 MLP34L MCPM-6 FCS1161 KUAM25 KUAM32 FCS9118
60 MST-432 MLP46 MCPM-6 FCS1161 KUAM25 KUAM32 FCS9118
70 MST-432 MLP46 MCPM-12 FCS239 KUAM25 KUAM32 FCS9184


Kr=85°
MSYNR/L




Right-hand
 Left-hand
 D min
 F
 L1
 Insert
 Stock R
 Stock L
MSYNR12CA-12 MSYNL12CA-12 50 20 55 SN..1204.. ● ○
MSYNR16CA-12 MSYNL16CA-12 60 25 63 SN..1204.. ● ○
MSYNR20CA-15 MSYNL20CA-15 70 25 70 SN..1506.. ○ ○
MSYNR25CA-19 MSYNL25CA-19 100 32 100 SN..1906.. ○ ○


1.png 2.png 3.png 4.png 5.png 6.png 7.png
D min Cutter pad Fitting pin Press plate Dowel screw Radial screw Axial screw Fixing screw
50 NO MLP44 MCPM-6 FCS1161 KUAM23 KUAM31 FCS9025
60 MST-432 MLP46S MCPM-6 FCS1161 KUAM25 KUAM32 FCS9118
70 S15BM TM8*21 MCPM-20 FCS239 KUAM25 KUAM32 FCS9184
100 MSS-633 MLP68 MCPM-12 FCS9001 KUAM25 KUAM32 FCS9079


Kr=75°
MCKNR/L




Right-hand
 Left-hand
 D min
 F
 L1
 Insert
 Stock R
 Stock L
MCKNR12CA-12 MCKNL12CA-12 50 20 55 CN..1204.. ● ○
MCKNR16CA-12 MCKNL16CA-12 60 25 63 CN..1204.. ● ○
MCKNR20CA-12 MCKNL20CA-12 70 25 70 CN..1204.. ● ○


1.png 2.png 3.png 4.png 5.png 6.png 7.png
D min Cutter pad Fitting pin Press plate Dowel screw Radial screw Axial screw Fixing screw
50 NO MLP44 MCPM-6 FCS1161 KUAM23 KUAM31 FCS9025
60 MST-432 MLP46S MCPM-6 FCS1161 KUAM25 KUAM32 FCS9118
70 MSC-432 MLP46 MCPM-20 FCS239 KUAM25 KUAM32 FCS9184


Kr=75°
MSKNR/L




Right-hand
 Left-hand
 D min
 F
 L1
 Insert
 Stock R
 Stock L
MSKNR12CA-12 MSKNL12CA-12 50 20 55 SN..1204.. ● ○
MSKNR16CA-12 MSKNL16CA-12 60 25 63 SN..1204.. ● ○
MSKNR20CA-15 MSKNL20CA-15 70 25 70 SN..1506.. ● ○
MSKNR25CA-19 MSKNL25CA-19 100 32 100 SN..1906.. ○ ○


1.png 2.png 3.png 4.png 5.png 6.png 7.png
D min Cutter pad Fitting pin Press plate Dowel screw Radial screw Axial screw Fixing screw
50 NO MLP44 MCPM-6 FCS1161 KUAM23 KUAM31 FCS9025
60 MST-432 MLP46S MCPM-6 FCS1161 KUAM25 KUAM32 FCS9118
70 S15BM TM8*21 MCPM-21 MSC625-3 KUAM25 KUAM32 FCS9184
100 MSS-633 MLP68 MCPM-12 FCS9001 KUAM25 KUAM32 FCS9079


Kr=75°
MSRNR/L




Right-hand
 Left-hand
 D min
 F
 L1
 Insert
 Stock R
 Stock L
MSRNR12CA-12 MSRNL12CA-12 50 20 55 SN..1204.. ● ○
MSRNR16CA-12 MSRNL16CA-12 60 25 63 SN..1204.. ● ●
MSRNR20CA-15 MSRNL20CA-15 70 25 70 SN..1506.. ● ○


1.png 2.png 3.png 4.png 5.png 6.png 7.png
D min Cutter pad Fitting pin Press plate Dowel screw Radial screw Axial screw Fixing screw
50 NO MLP44 MCPM-6 FCS1161 KUAM23 KUAM31 FCS9025
60 MST-432 MLP46S MCPM-6 FCS1161 KUAM25 KUAM32 FCS9118
70 MSS-633 MLP68 MCPM-12 FCS9001 KUAM25 KUAM32 FCS9184


Kr=60°
MSTNR/L




Right-hand
 Left-hand
 D min
 F
 L1
 Insert
 Stock R
 Stock L
MSTNR12CA-12 MSTNL12CA-12 50 13 55 SN..1204.. ● ○
MSTNR16CA-12 MSTNL16CA-12 60 15 63 SN..1204.. ● ●
MSTNR20CA-15 MSTNL20CA-15 70 32 70 SN..1506.. ○ ○
MSTNR25CA-19 MSTNL25CA-19 100 32 100 SN..1906.. ○
 ○


1.png 2.png 3.png 4.png 5.png 6.png 7.png
D min Cutter pad Fitting pin Press plate Dowel screw Radial screw Axial screw Fixing screw
50 NO MLP44 MCPM-6 FCS1161 KUAM23 KUAM31 FCS9025
60 MST-432 MLP46S MCPM-6 FCS1161 KUAM25 KUAM32 FCS9118
70 MST-432 MLP46 MCPM-20 FCS239 KUAM25 KUAM32 FCS9184
100 MSS-633
 MLP68 MCPM-12 FCS9001 KUAM25 KUAM32 FCS9079


Kr=45°
MSSNR/L




Right-hand
 Left-hand
 D min
 F
 L1
 Insert
 Stock R
 Stock L
MSSNR12CA-12 MSSNL12CA-12 50 20 47 SN..1204.. ● ○
MSSNR16CA-12 MSSNL16CA-12 60 25 53 SN..1204.. ● ●
MSSNR20CA-15 MSSNL20CA-15 70 25 60 SN..1506.. ○ ○


1.png 2.png 3.png 4.png 5.png 6.png 7.png
D min Cutter pad Fitting pin Press plate Dowel screw Radial screw Axial screw Fixing screw
50 NO MLP44 MCPM-6 FCS1161 KUAM23 KUAM31 FCS9025
60 MST-432 MLP46S MCPM-6 FCS1161 KUAM25 KUAM32 FCS9118
70 MSS-633 MLP68 MCPM-12 FCS9001 KUAM25 KUAM32 FCS9184


Kr=107.5°
MDQNR/L




Right-hand
 Left-hand
 D min
 F
 L1
 Insert
 Stock R
 Stock L
MDQNR16CA-15 MDQNL16CA-15 60 25 63 DN..150408 ● ●
MDQNR20CA-15 MDQNL20CA-15 70 25 70 DN..150408 ● ○


1.png 2.png 3.png 4.png 5.png 6.png 7.png
D min Cutter pad Fitting pin Press plate Dowel screw Radial screw Axial screw Fixing screw
60 MSD-442 MLP46S MCPM-6 FCS1161 KUAM25 KUAM32 FCS9118
70 MSD-442 MLP46 MCPM-21 MCS625-3 KUAM25 KUAM32 FCS9184


Kr=95°
SCL.R/L




Right-hand Left-hand h f L h1 L1 D min Insert Screw Key Stock R Stock L
SCLPR06CA-05 SCLPL06CA-05 6 8 25 8.5 12 20 CP..0502.. FCS1020 T07 ○ ○
SCLPR08CA-06 SCLPL08CA-06 8 10 32 10 17 25 CP..0602.. FS923 T08 ● ●
SCLCR08CA-06 SCLCL08CA-06 8 10 32 10 17 25 CC..0602.. FS923 T08 ● ●
SCLCR10CA-09 SCLCL10CA-09 10 14 50 15 20 40 CC..09T3.. FS359 T15 ● ●
SCLCR12CA-12 SCLCL12CA-12 12 20 55 20 20 50 CC..1204.. FS1030 T20 ● ●
SCLCR16CA-12 SCLCL16CA-12 16 25 63 21 25 60 CC..1204.. FS1030 T20 ● ●


Kr=93°
SDJ.R/L




Right-hand Left-hand h f L h1 L1 D  min Insert Screw Key Stock R Stock L
SDJCR08CA-07 SDJCL08CA-07 8 14 50 15 20 25 DC..0702 FS923 T08 ○ ○
SDJCR10CA-07 SDJCL10CA-07 10 14 50 15 20 40 DC..0702 FS923 T08 ○ ○
SDJCR10CA-11 SDJCL10CA-11 10 14 50 15 20 40 DC..11T3 FS378 T15 ● ○
SDJCR12CA-11 SDJCL12CA-11 12 20 55 20 20 50 DC..11T3 FS378 T15 ○ ○
SDJPR10CA-07 SDJPL10CA-07 10 14 50 15 20 50 DP..0702 MS1153 T07 ○ ○

Kr=93°
SDU.R/L




Right-hand Left-hand h f L h1 L1 D  min Insert Screw Key Stock R Stock L
SDUCR10CA-07 SDUCL10CA-07 10 14 50 15 20 40 DC..0702 FS923 T08 ○ ○

Kr=90°
SCF.R/L




Right-hand Left-hand h f L h1 L1 D  min Insert Screw Key Stock R Stock L
SCFPR06CA-05 SCFPL06CA-05 6 8 25 8.5 12 20 CP..0502.. FCS1020 T07 ● ●
SCFPR08CA-06 SCFPL08CA-06 8 10 32 10 17 25
 CP..0602.. FS923 T08 ○ ○
SCFCR08CA-06 SCFCL08CA-06 8 10 32 10 17 25 CC..0602.. FS923 T08 ● ●
SCFCR10CA-06 SCFCL10CA-06 10 14 50 15 20 40 CC..0602.. FS923 T08 ○ ○
SCFCR10CA-09 SCFCL10CA-09 10 14 50 15 20 40 CC..09T3.. FS359 T15 ● ●
SCFPR10CA-09 SCFPL10CA-09 10 14 50 14.75 20 40 CC..09T3.. FS359 T15 ○ ○
SCFCR12CA-09 SCFCL12CA-09 12 20 55 20 20 50 CC..09T3.. FS359 T15 ○ ○
SCFCR12CA-12 SCFCL12CA-12 12 20 55 20 20 50 CC..1204.. FS1030 T20 ● ●
SCFCR16CA-12 SCFCL16CA-12 16 25 63 20 25 60 CC..1204.. FS1030 T20 ○ ○

Kr=90°
STF.R/L




Right-hand Left-hand h f L h1 L1 D  min Insert Screw Key Stock R Stock L
STFPR08CA-09 STFPL08CA-09 8 10 32 10 17 25 TP..0902 FCS1020 T07 ○ ○
STFPR10CA-11 STFPL10CA-11 10 14 50 15 20 40 TP..1102 FS923 T08 ○ ○
STFPR12CA-16 STFPL12CA-16 12 20 55 20 20 50 TP..16T3 FS359 T15 ○ ○
STFPR16CA-16 STFPL16CA-16 16 25 63 21 25 60 TP..16T3 FS359 T15 ○ ○
STFCR06CA-06 STFCL06CA-06 6 8 25 8.5 12 20 TC..06T1 7729113 T06 ○ ○
STFCR08CA-09 STFCL08CA-09 8 10 32 10 17 25 TC..0902 FCS1020 T07 ● ●
STFCR10CA-11 STFCL10CA-11 10 14 50 15 20 40 TC..1102 FS923 T08 ● ●
STFCR12CA-16 STFCL12CA-16 12 20 55 20 20 50 TC..16T3 FS359 T15 ● ●
STFCR16CA-16 STFCL16CA-16 16 25 63 21 25 60 TC..16T3 FS359 T15 ● ●

Kr=90°
SCG.R/L




Right-hand Left-hand h f L h1 L1 D  min Insert Screw Key Stock R Stock L
SCGPR06CA-05 SCGPL06CA-05 6 8 25 8.5 12 20 CP..0502.. FCS1020 T07 ○ ○
SCGCR08CA-06 SCGCL08CA-06 8 10 32 10 17 25 CC..0602.. FS923 T08 ○ ●
SCGCR10CA-09 SCGCL10CA-09 10 14 50 15 20 40 CC..09T3.. FS359 T15 ○ ○
SCGCR12CA-09 SCGCL12CA-09 12 20 55 20 20 50 CC..09T3.. FS359 T15 ○ ○
SCGCR12CA-12 SCGCL12CA-12 12 20 55 20 20 50 CC..1204.. FS1030 T20 ○ ●
SCGCR16CA-12 SCGCL16CA-12 16 25 63 21 25 60 CC..1204.. FS1030 T20 ○ ●

Kr=90°
STG.R/L




Right-hand Left-hand h f L h1 L1 D  min Insert Screw Key Stock R Stock L
STGCR06CA-06 STGCL06CA-06 6 8 25 8.5 12 20 TC..06T1 7729113 T06 ○ ○
STGCR08CA-09 STGCL08CA-09 8 10 32 10 17 25 TC..0902 FCS1020 T07 ○ ○
STGCR10CA-11 STGCL10CA-11 10 14 50 15 20 40 TC..1102 FS923 T08 ○ ○
STGCR12CA-16 STGCL12CA-16 12 20 55 20 20 50 TC..16T3 FS359 T15 ○ ○
STGCR16CA-16 STGCL16CA-16 16 25 63 21 25 60 TC..16T3 FS359 T15 ○ ●
STGCR16CA-22 STGCL16CA-22 16 25 63 21 25 60 TC..2204 FS1030 T20 ○ ●
STGPR10CA-11 STGPL10CA-11 10 14 50 14.75 20 40 TP..1102 FS923 T08 ○ ○
STGPR12CA-16 STGPL12CA-16 12 20 53 20 20 50 TP..16T3 FS359 T15 ○ ○

Kr=90°
SRG.R/L




Right-hand Left-hand h f L h1 L1 D  min Insert Screw Key Stock R Stock L
SRGPR10CA-10 SRGPL10CA-10 10 14 32 14 20 40 RP..10T3 FS359 T15 ● ○
SRGCR08CA-06 SRGCL08CA-06 8 10 32 10 17 25 RC..0602 FS322 T07 ● ○
SRGCR10CA-08 SRGCL10CA-08 10 14 50 15 20 40 RC..0803 FS246 T08 ● ●
SRGCR12CA-10 SRGCL12CA-10 12 20 55 20 20 50 RC..1003 FS359 T15 ○ ○

Kr=75°
SCK.R/L




Right-hand Left-hand h f L h1 L1 D  min Insert Screw Key Stock R Stock L
SCKPR06CA-05
 SCKPL06CA-05 6 8 25 8.5 12 20 CP..0502.. FCS1020 T07 ○ ○
SCKCR08CA-06 SCKCL08CA-06 8 10 32 10 17 25 CC..0602.. FS923 T08 ○ ○
SCKCR10CA-09 SCKCL08CA-07 10 14 50 15 20 40 CC..09T3.. FS359 T15 ○ ○
SCKCR12CA-12 SCKCL12CA-12 12 25 55 21 25 50 CC..1204.. FS1030 T20 ● ●

Kr=75°
SSK.R/L




Right-hand Left-hand h f L h1 L1 D  min Insert Screw Key Stock R Stock L
SSKCR10CA-09 SSKCL10CA-09 10 14 50 15 20 40 SC..09T3.. FS359 T15 ● ●
SSKCR12CA-09 SSKCL12CA-09 12 20 55 20 20 50 SC..09T3.. FS359 T15 ○ ○
SSKCR12CA-12 SSKCL12CA-12 12 20 55 20 20 50 SC..1204.. FS1030 T20 ● ●
SSKCR16CA-12 SSKCL16CA-12 16 25 63 21 25 60 SC..1204.. FS1030 T20 ● ●
SSKPR10CA-09 SSKPL10CA-09 10 14 50 15 20 40 SP..09T3.. FS359 T15 ○ ○
SSKPR12CA-12 SSKPL12CA-12 12 20 55 20 20 50 SP..1204.. FS1030 T20 ○ ○

Kr=75°
SCR.R/L




Right-hand Left-hand h f L h1 L1 D  min Insert Screw Key Stock R Stock L
SCRPR06CA-05 SCRPL06CA-05 6 8 25 8.5 12 20 CP..0502.. FCS1020 T07 ○ ○
SCRPR08CA-06 SCRPL08CA-06 8 10 32 10 17 25 CP..0602.. FS923 T08 ● ○
SCRCR08CA-06 SCRCL08CA-06 8 10 32 10 17 25 CC..0602.. FS923 T08 ○ ○
SCRCR10CA-09 SCRCL10CA-09 10 14 50 15 20 40 CC..09T3.. FS359 T15 ○ ○

Kr=75°
SSR.R/L




Right-hand Left-hand h f L h1 L1 D  min Insert Screw Key Stock R Stock L
SSRCR10CA-09 SSRCL10CA-09 10 14 50 15 20 40 SC..09T3.. FS359 T15 ● ●
SSRCR12CA-09 SSRCL12CA-09 12 20 55 20 20 50 SC..09T3.. FS359 T15 ○ ○
SSRCR12CA-12 SSRCL12CA-12 12 20 55 20 20 50 SC..1204.. FS1030 T20 ● ●
SSRCR16CA-12 SSRCL16CA-12 16 25 63 21 25 55 SC..1204.. FS1030 T20 ● ●
SSRPR10CA-09 SSRPL10CA-09 10 14 50 15 20 40 SP..09T3.. FS359 T15 ● ○
SSRPR16CA-12 SSRPL16CA-12 16 25 63 21 25 55 SP..1204.. FS1030 T20 ○ ○

Kr=60°
SCT.R/L




Right-hand Left-hand h f L h1 L1 D  min Insert Screw Key Stock R Stock L
SCTPR06CA-05
 SCTPL06CA-05 6 5.5 25 8.5 12 20 CP..0502.. FCS1020 T07 ○ ○
SCTPR08CA-06 SCTPL08CA-06 8 6 32 10 17 25 CC..0602.. FS923 T08 ● ●
SCTCR08CA-06 SCTCL08CA-06 8 6 32 10 17 25 CC..0602.. FS923 T08 ○ ○
SCTCR10CA-09 SCTCL10CA-09 10 9 50 15 20 40 CC..09T3.. FS359 T15 ● ○

Kr=60°
STT.R/L




Right-hand Left-hand h f L h1 L1 D  min Insert Screw Key Stock R Stock L
STTPR08CA-09 STTPL08CA-09 8 6 32 10 17 25 TP..0902 FCS1020 T07 ○ ○
STTPR10CA-11 STTPL10CA-11 10 9 50 15 20 40 TP..1102 FS923 T08 ● ●
STTPR12CA-16 STTPL12CA-16 12 13 55 20 20 50 TP..16T3 FS359 T15 ● ●
STTCR06CA-06 STTCL06CA-06 6 5.5 25 8.5 12 20 TC..06T1 7729113 T06 ○ ○
STTCR08CA-09 STTCL08CA-09 8 6 32 10 17 25 TC..0902 FCS1020 T07 ○ ○
STTCR10CA-11 STTCL10CA-11 10 9 50 15 20 40 TC..1102 FS923 T08 ● ●
STTCR12CA-16 STTCL12CA-16 12 13 55 20 20 50 TC..16T3 FS359 T15 ○ ○
STTCR16CA-16 STTCL16CA-16 16 15 63 21 25 60 TC..16T3 FS359 T15 ○ ○

Kr=60°
SCW.R/L




Right-hand Left-hand h f L h1 L1 D  min Insert Screw Key Stock R Stock L
SCWPR06CA-05 SCWPL06CA-05 10 6 22.7 8.5 12 20 CP..0502.. FCS1020 T07 ○ ○
SCWPR08CA-06 SCWPL08CA-06 10 8 29 10 17 25 CP..0602.. FS923 T08 ● ○
SCWCR08CA-06 SCWCL08CA-06 10 8 29 10 17 25 CC..0602.. FS923 T08 ● ○
SCWCR10CA-09 SCWCL10CA-09 14 10 44 15 20 40 CC..09T3.. FS359 T15 ○ ○

Kr=60°
STW.R/L




Right-hand Left-hand h f L h1 L1 D  min Insert Screw Key Stock R Stock L
STWCR06CA-06 STWCL06CA-06 6 8 21 8.5 12 20 TC..0602 7729113 T06 ○ ○
STWCR08CA-09 STWCL08CA-09 8 10 29 10 17 25 TC..0902 FCS1020 T07 ○ ○
STWCR10CA-11 STWCL10CA-11 10 14 44 15 20 40 TC..1102 FS923 T08 ● ○
STWCR12CA-16 STWCL12CA-16 12 20 47 20 20 50 TC..16T3 FS359 T15 ● ○
STWCR16CA-16 STWCL16CA-16 16 25 53 21 25 55 TC..16T3 FS359 T15 ○ ○
STWPR12CA-16 STWPL12CA-16 12 20 47 20 20 50 TP..16T3 FS359 T15 ● ○

Kr=45°
SCS.R/L




Right-hand Left-hand h f L h1 L1 D  min Insert Screw Key Stock R Stock L
SCSPR06CA-05 SCSPL06CA-05 6 8 21.4 8.5 12 20 CP..0502.. FCS1020 T07 ● ○
SCSPR08CA-06 SCSPL08CA-06 8 10 28 10 17 25 CP..0602.. FS923 T08 ○ ○
SCSCR08CA-06 SCSCL08CA-06 8 10 28 10 17 25 CP..0602.. FS923 T08 ○ ○
SCSCR10CA-09 SCSCL10CA-09 10 14 44 44 20 40 CC..09T3.. FS359 T15 ○ ○

Kr=45°
SSS.R/L




Right-hand Left-hand h f L h1 L1 D  min Insert Screw Key Stock R Stock L
SSSCR10CA-09 SSSCL10CA-09 10 14 44 15 20 40 SC..09T3.. FS359 T15 ● ○
SSSCR12CA-09 SSSCL12CA-09 12 20 47 20 20 50 SC..09T3.. FS359 T15 ○ ○
SSSCR12CA-12 SSSCL12CA-12 12 20 47 20 20 50 SC..1204.. FS1030 T20 ● ○
SSSCR16CA-12 SSSCL16CA-12 16 25 53 21 25 60 SC..1204.. FS1030 T20 ○ ●
SSSPR10CA-09 SSSPL10CA-09 10 14 44 14.75 20 40 SP..09T3.. FS359 T15 ○ ○
SSSPR12CA-09 SSSPL12CA-09 12 20 50 20 20 50 SP..09T3.. FS359 T15 ○ ○

Kr=45°
STS.R/L




Right-hand Left-hand h f L h1 L1 D  min Insert Screw Key Stock R Stock L
STSCR06CA-06 STSCL06CA-06 6 8 21 8.5 12 20 TC..06T1 7729113 T06 ○ ○
STSCR08CA-09 STSCL08CA-09 8 10 11 17 28 25 TC..0902 FCS1020 T07
 ○ ○
STSCR10CA-11 STSCL10CA-11 10 14 50 15 20 40 TC..1102 FS923 T08 ● ○
STSCR12CA-16 STSCL12CA-16 12 20 55 20 20 50 TC..16T3 FS359 T15 ● ○
STSCR16CA-16 STSCL16CA-16 16 25 63 22.25 25 55 TC..16T3 FS359 T15 ● ●

Kr=95°
FCR/L 653
FCR/L 655




Type
 D mm d1 mm F mm H mm L mm Insert Type Insert Lock Screw Radial Adjust Screw Axial Adjust Screw Holder Lock Screw Key Stock
FCR653 40 6 18.3 10 30.3 CC..09T3.. FS359 FCS384 FCS384 FCS9032 T15 ●
FCL653 40 6 18.3 10 30.3 CC..09T3.. FS359 FCS384 FCS384 FCS9032 T15 ●
FCR655 48 7 22.3 12 36.3 CC..1204.. FS1030 FCS384 FCS384 FCS9032 T20 ●
FCL655 48 7 22.3 12 36.3 CC..1204.. FS1030 FCS384 FCS384 FCS9032 T20 ●

Kr=90°
FCR/L 658
FCR/L 659




Type
 D mm d1 mm F mm H mm L mm Insert Type Insert Lock Screw Radial Adjust Screw Axial Adjust Screw Holder Lock Screw Key Stock
FCR658 40 6 18.3 10 30.3 CC..09T3.. FS359 FCS384 FCS384 FCS9032 T15 ●
FCL658 40 6 18.3 10 30.3 CC..09T3.. FS359 FCS384 FCS384 FCS9032 T15 ●
FCR659 48 7 22.3 12 36.3 CC..1204.. FS1030 FCS384 FCS384 FCS9032 T20 ●
FCL659 48 7 22.3 12 36.3 CC..1204.. FS1030 FCS384 FCS384 FCS9032 T20 ●

Kr=75°
FCR/L 654
FCR/L 656




Type
 D mm d1 mm F mm H mm L mm Insert Type Insert Lock Screw Radial Adjust Screw Axial Adjust Screw Holder Lock Screw Key Stock
FCR654 40 6 18.3 10 28.3 CC..09T3.. FS359 FCS384 FCS384 FCS9032 T15 ●
FCL654 40 6 18.3 10 28.3 CC..09T3.. FS359 FCS384 FCS384 FCS9032 T15 ●
FCR656 48 7 22.3 12 33.5 CC..1204.. FS1030 FCS384 FCS384 FCS9035 T20 ●
FCL656 48 7 22.3 12 33.5 CC..1204.. FS1030 FCS384 FCS384 FCS9035 T20 ●

Kr=45°
FCR/L 646
FCR/L 650




Type
 D mm d1 mm F mm H mm L mm Insert Type Insert Lock Screw Radial Adjust Screw Axial Adjust Screw Holder Lock Screw Key Stock
FCR646 40 6 18.3 10 28.3 SC..09T3.. FS359 FCS384 FCS384 FCS9032 T15 ●
FCL646 40 6 18.3 10 28.3 SC..09T3.. FS359 FCS384 FCS384 FCS9032 T15 ●
FCR650 48 7 22.3 12 33.5 SC..1204.. FS1030 FCS384 FCS384 FCS9035 T20 ●
FCL650 48 7 22.3 12 33.5 SC..1204.. FS1030 FCS384 FCS384 FCS9035 T20 ●

Kr=90°
FCR/L 670
FCR/L 671




Type
 D mm d1 mm F mm H mm L mm Insert Type Insert Lock Screw Radial Adjust Screw Axial Adjust Screw Holder Lock Screw Key Stock
FCR670
 14.5 3.4 8 6 25 CP..0502.. FS1020 FCS493 FCS1023 FCS1024 T07 ●
FCL670 14.5 3.4 8 6 25 CP..0502.. FS1020 FCS493 FCS1023 FCS1024 T07 ●
FCR671 20 3.4 9.7 6 25 CC..0602.. FS924 FCS493 FCS1023 FCS1024 T08 ●
FCL671 20 3.4 9.7 6 25 CC..0602.. FS924 FCS493 FCS1023 FCS1024 T08 ●

Kr=90°
FCR/L 672




Type
 D mm d1 mm F mm H mm L mm Insert Type Insert Lock Screw Radial Adjust Screw Axial Adjust Screw Holder Lock Screw Key Stock
FCR672 20 4.5 11 8 28 TC..1102.. FS924 FCS493 FCS1023 FCS1025 T08 ●
FCL672 20 4.5 11 8 28 TC..1102.. FS924 FCS493 FCS1023 FCS1025 T08 ●

Kr=45°
FCR/L 673




Type
 D mm d1 mm F mm H mm L mm Insert Type Insert Lock Screw Radial Adjust Screw Axial Adjust Screw Holder Lock Screw Key Stock
FCR673
 20 4.5 10.8 8 28 TC..1102.. FS924 FCS493 FCS1023 FCS1025 T08 ●
FCL673 20 4.5 10.8 8 28 TC..1102.. FS924 FCS493 FCS1023 FCS1025 T08 ●

Kr=60°
FCR/L 674




Type
 D mm d1 mm F mm H mm L mm Insert Type Insert Lock Screw Radial Adjust Screw Axial Adjust Screw Holder Lock Screw Key Stock
FCR674 20 1.5 11 8 18.9 TC..1102.. FS924 FCS493 FCS1023 FCS1025 T08 ●
FCL674 20 1.5 11 8 18.9 TC..1102.. FS924 FCS493 FCS1023 FCS1025 T08 ●

Kr=30°
FCR/L 675




Type
 D mm d1 mm F mm H mm L mm Insert Type Insert Lock Screw Radial Adjust Screw Axial Adjust Screw Holder Lock Screw Key Stock
FCR675 20 4.5 10.8 8 22.8 TC..1102.. FS924 FCS493 FCS1023 FCS1025 T08 ●
FCL675 20 4.5 10.8 8 22.8 TC..1102.. FS924 FCS493 FCS1023 FCS1025 T08 ●

Kr=90°
FCR/L 679
FCR/L 680




Type
 D mm d1 mm F mm H mm L mm Insert Type Insert Lock Screw Radial Adjust Screw Axial Adjust Screw Holder Lock Screw Key Stock
FCR679 14.5 3.4 8 6 25 WC..0302.. FS1020 FCS493 FCS1023 FCS1024 T07 ●
FCR680 20 3.4 9.7 6 25 WC..0402.. FS924 FCS493 FCS1023 FCS1024 T08 ●

Kr=90°
SCFCR/L09
SCFCR/L16




Type
 D mm d1 mm F mm H mm L mm Insert Type Insert Lock Screw Holder Lock Screw Key Stock
SCFCR09CA06-FB 28 5.5 15.9 8.5 45.6 CC..0602.. FCS924 FCS1354 T08 ●
SCFCL09CA06-FB 28 5.5 15.9 8.5 45.6 CC..0602.. FCS924 FCS1354 T08 ●
SCFCR16CA09-FB 55 8.5 25 16 63 CC..09T3.. FS359 FCS9044 T15 ●
SCFCL16CA09-FB 55 8.5 25 16 63 CC..09T3.. FS359 FCS9044 T15 ●

Kr=95°
SCLCR/L06
SCLCR/L09




Type
 D mm d1 mm F mm H mm L mm Insert Type Insert Lock Screw Holder Lock Screw Key Stock
SCLCR09CA06-FB 28 5.5 15.9 8.5 45.6 CC..0602.. FCS924 FCS1354 T08 ●
SCLCL09CA06-FB 28 5.5 15.9 8.5 45.6 CC..0602.. FCS924 FCS1354 T08 ●
SCLCR16CA09-FB 55 8.5 25 16 63 CC..09T3.. FS359 FCS9044 T15 ●
SCLCL16CA09-FB 55 8.5 25 16 63 CC..09T3.. FS359 FCS9044 T15 ●

Kr=120°
SDLCR/L09
SDLCR/L16




Type
 D mm d1 mm F mm H mm L mm Insert Type Insert Lock Screw Holder Lock Screw Key Stock
SDJCR09CA07-FB 28 5.5 15.9 8.5 48.6 DC..0702.. FS923 FCS1354 T08 ●
SDJCL09CA07-FB 28 5.5 15.9 8.5 48.6 DC..0702.. FS923 FCS1354 T08 ●
SDJCR16CA11-FB 55 8.5 25 16 63 DC..11T3 FCS378 FCS9044 T15 ●
SDJCL16CA11-FB 55 8.5 25 16 63 DC..11T3 FCS378 FCS9044 T15 ●

FBB
SCLCR09
SCFCR09
SDJCR09




Type
 D mm d1 mm F mm H mm L mm Insert Type Insert Lock Screw Holder Lock Screw Key Stock
SCLCR09CA06-FBB 50 5.5 19.9 9 45.6 CC..0602 FS923 FCS9044 T08 ●
SCFCR09CA06-FBB 50 5.5 19.9 9 45.6 CC..0602 FS923 FCS9044 T08 ●
SDJCR09CA07-FBB 50 5.5 19.9 9 45.6 DC..0702 FS923 FCS9044 T08 ●

Kr=90°
STFPR09
STFCR/L09
STFPR/L09
STFCR/L16




Type
 D mm d1 mm F mm H mm L mm Insert Type Insert Lock Screw Holder Lock Screw Key Stock
STFPR09CA09-FB 28 5.5 16 9 45.6 TP..0902 FS923 FCS9044 T08 ●
STFCR09CA11-FB 32 5.5 20 9 45.6 TC..1102 FS923 FCS9044 T08 ●
STFCL09CA11-FB 32 5.5 20 9 45.6 TC..1102 FS923 FCS9044 T08 ●
STFPR09CA11-FB 32 5.5 20 9.7 45.6 TP..1103 FS923 FCS9044 T08 ●
STFPL09CA11-FB 32 5.5 20 9.7 45.6 TP..1103 FS923 FCS9044 T08 ●
STFCR16CA16-FB 55 9 25 16 63 TC..16T3 FS359 FCS9044 T15 ●
STFCL16CA16-FB 55 9 25 16 63 TC..16T3 FS359 FCS9044 T15 ●

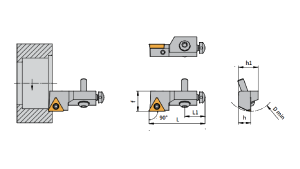

Kr=90°
STUPR09
STUCR/L09
STUPR/L09




Type
 D mm d1 mm F mm H mm L mm Insert Type Insert Lock Screw Holder Lock Screw Key Stock
STUPR09CA09-FB 28 5.5 15.9 9 45.6 TP..0902 FS923 FCS9044 T08 ●
STUCR09CA11-FB 32 5.5 20 9 45.6 TC..1102 FS923 FCS9044 T08 ●
STUCL09CA11-FB 32 5.5 20 9 45.6 TC..1102 FS923 FCS9044 T08 ●
STUPR09CA11-FB 32 5.5 20 9.7 45.6 TP..1103 FS923 FCS9044 T08 ●
STUPL09CA11-FB 32 5.5 20 9.7 45.6 TP..1103 FS923 FCS9044 T08 ●
